 We visited the Thames Barrier on Sept 28, 2006
The Barrier was completed in 1984 to protect London from flooding.           How it works              Detailed Maths background

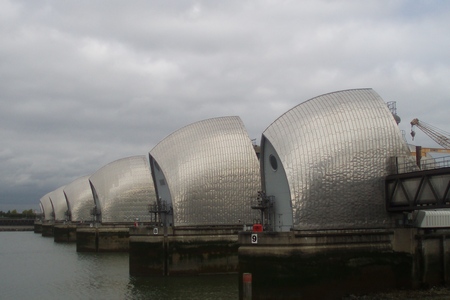

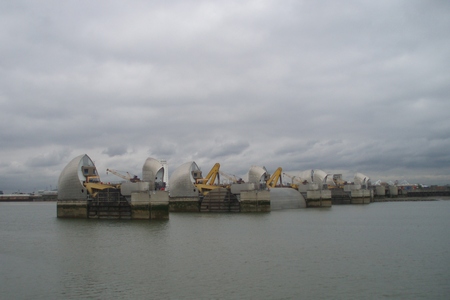

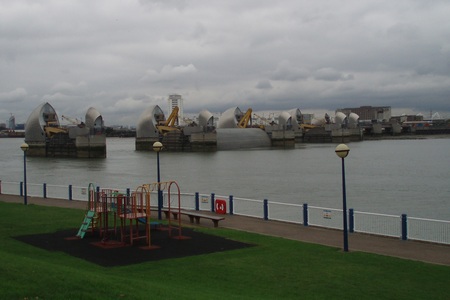

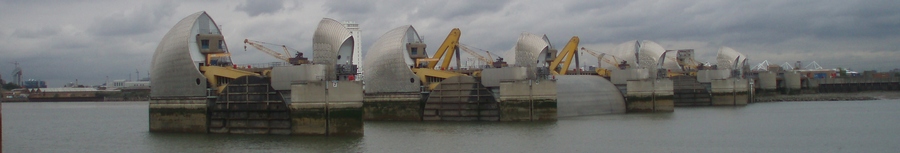

There are 10 gates across the river.  Aerial photo  All the gates are made of steel. The four large central gates are 61 metres long, 10.5 metres high (above local ground level) and weigh 1,500 tonnes; the outer two gates are 31.5 metres.

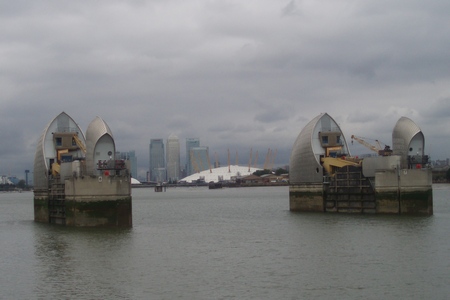

Stainless steel sails straight from the Sydney Opera House! It is just downstream from the Millennium Dome and Canary Wharf

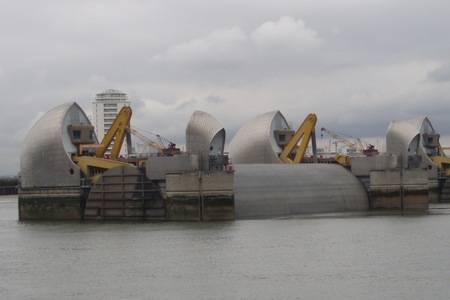

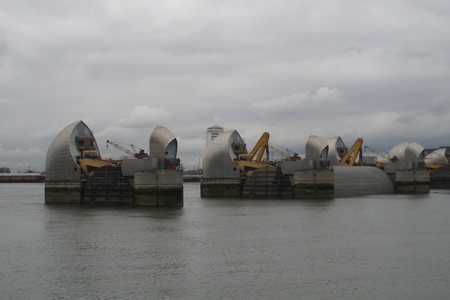

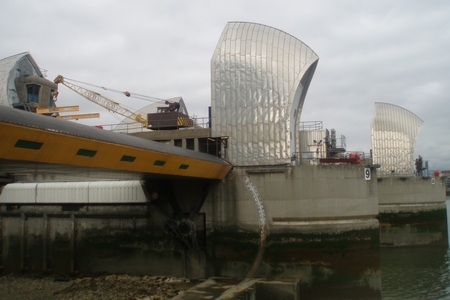

This shows one flood gate closed........The flood gates across the openings are radial, i.e., half-cylindrical, and they operate by rotating, raised by hydraulics out of a horizontal sill below the water to form the barrier.  [see Operations] Note the different positions of the gantry arms.

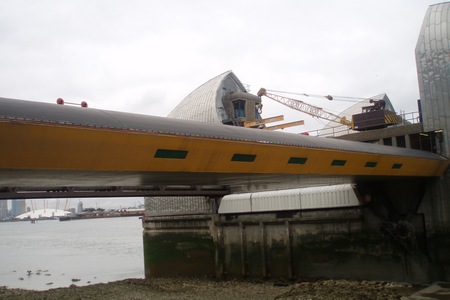

Four radial gates by the riverbanks can be lowered. These gate openings, unlike the main six, are non-navigable.

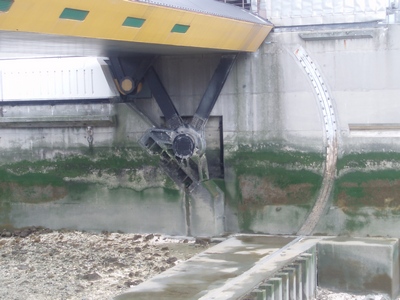

Detail showing the rotating mechanism. Some local inhabitants
